Products

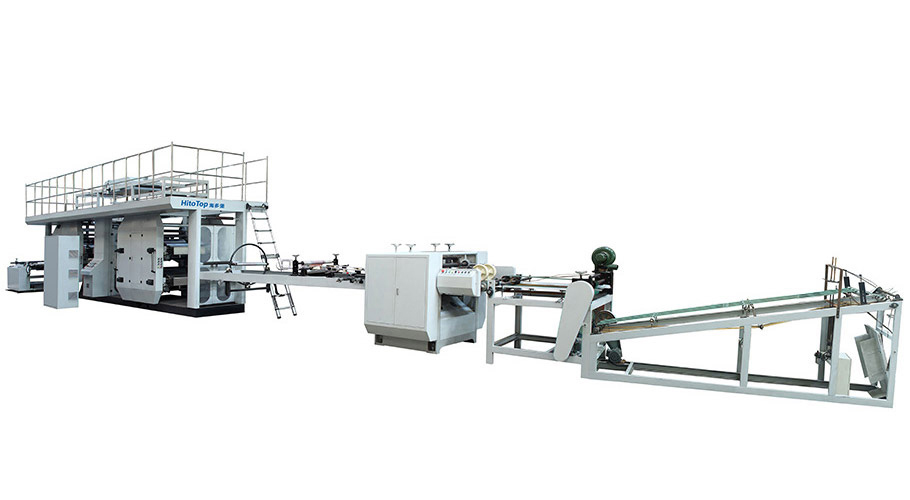

Planetary flexographic bag making machine


The planetary printing machine means that the four color groups of one printing machine revolve around two large-diameter pressing roller structures at the upper and lower parts.


Purpose:



It is used for printing of PP woven cloth and paper-plastic composite coiled materials. After printing, it can realize winding or be connected with the bag making unit to form an integral machine. It is used for making cement bags, flour bags, rice bags, feedstuff bags, compound fertilizer bags, aquatic product packaging bags, frozen meat packaging bags, putty powder bags, chemical bags, plastic granule bags, etc.

Being devoted to meeting bag making demands in the industry, wholeheartedly serving PP woven packaging customers, professional PP woven cloth production equipment.


Equipment performance and features:



The color numbers at the front and back are the same. It is a patented product with the best balanced registering precision and product price.

The advanced cloth control system including tension control and deviation correcting devices ensures stable color registration.

Thickened cast iron wallboard. The upper and lower beams are welded by channel steel, and the advanced construction process meets the need for long-term stable operation of the machine at high speed.

Servo power main motor, strong and stable low torque, changing automatically according to the speed with the best effect, without waste at machine starting and stopping.

Automatic ink supply, automatic roller lifting and ink mixing at the time of stopping, durable stainless steel ink cartridge.

The closed high-speed circulating oven is energy-saving and environment-friendly.

Deflectable and displaceable forming, stable gas emission without scratching or damaging the bag.

Double servo power small hob, low vibration, noise and energy consumption, automatic collection of waste pieces, conducive to cleanliness management of the workshop environment and clean returns.

Consistent direction of false cut valve mouths, stopping of bag stacking at the fixed number level, low labor and labor intensity, and easy work of employees helps to reduce the management cost.

Accessories of internationally first-class brands, nationally first-class manufacturing processes and nationally first-class brand service.

Low noise and internationally standard safety protection design, beautiful and decent equipment, medium investment, little maintenance and high benefit.

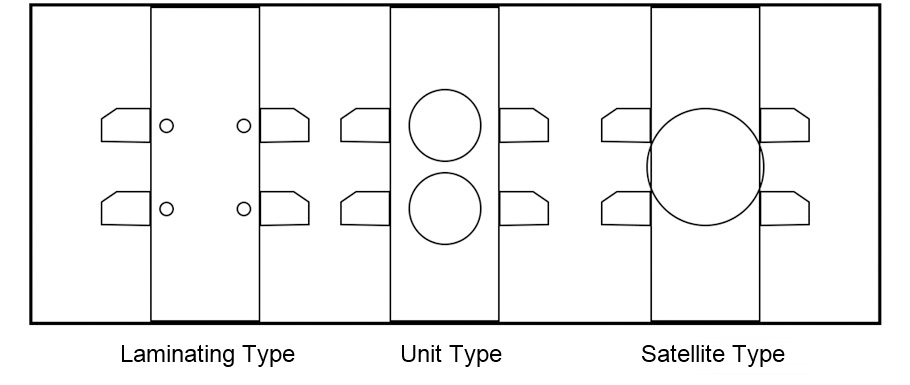

* Summary: Compared with ordinary laminating type products, due to its structural advantages, this machine has higher printing effect and precision and the same operation requires no additional power consumption and labor. Compared with satellite type printing machines, its printing effect is close to that of satellite type printing machines, and it has good performance-price ratio with low power consumption, simple maintenance and inexpensive price.


Technical parameters:



Maximum printing width

600mm

Printing length

700~1000mm

Registering precision

±0.5mm

Printing color number

8 colors (4 front and 4 back)

Winding and unwinding diameter

≤1400mm

Printing speed

60-140m/min

Main motor

5.5kw

Outline dimensions

24000×2300×3500mm


Configuration list:



Servo motor

Delta

PLC

Delta

Bearing

Zhejiang Renben

Wallboard material

Cast iron

Touch screen

Weinview

Switching power supply

Mean Well

Low voltage electric appliance

Schneider






Product appreciation



Running appreciation
